The WPC door frame has more advantages than the ordinary wooden door frame. Its structure is more reasonable, its strength is higher, it is waterproof, flame retardant, and it is easier to install.

The above figure shows the classification of our door frames and lines. The most commonly used are

Type A door frames and Type B door frames.

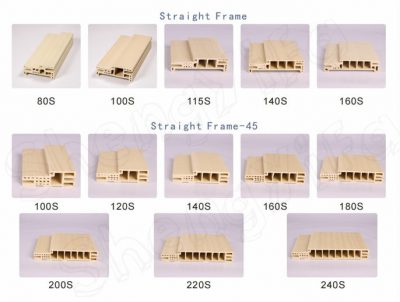

Type A door frames are mainly 80mm, 110mm, 120mm, 140mm and 160mm.

80mm door frame can cover 80mm to 100mm wall thickness

110mm door frame can cover 110mm to 130mm wall thickness

120mm door frame can cover 120mm to 140mm wall thickness

140mm door frame can cover 140mm to 160mm wall thickness

160mm door frame can cover 160mm to 180mm wall thickness

The main matching architraves of A-type door frame are 60 * 36, 70 * 44 and 80 * 60

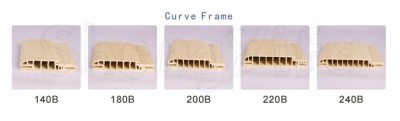

Type B door frame is mainly 140mm, 160mm, 200mm, 220mm, 240mm

200mm door frame can cover 160mm to 180mm wall thickness

220mm door frame can cover 220mm to 240mm wall thickness

240mm door frame can cover 240mm to 300mm wall thickness

Generally speaking, door frame B matches the architraves of 100 * 46 and 100 * 85, but other architraves can also be matched.

Our WPC door frame can cover the wall thickness of 80mm to 300mm, or you can just buy our door frame. Just tell us the wall thickness, and we will choose the appropriate door frame and architraves for you.
